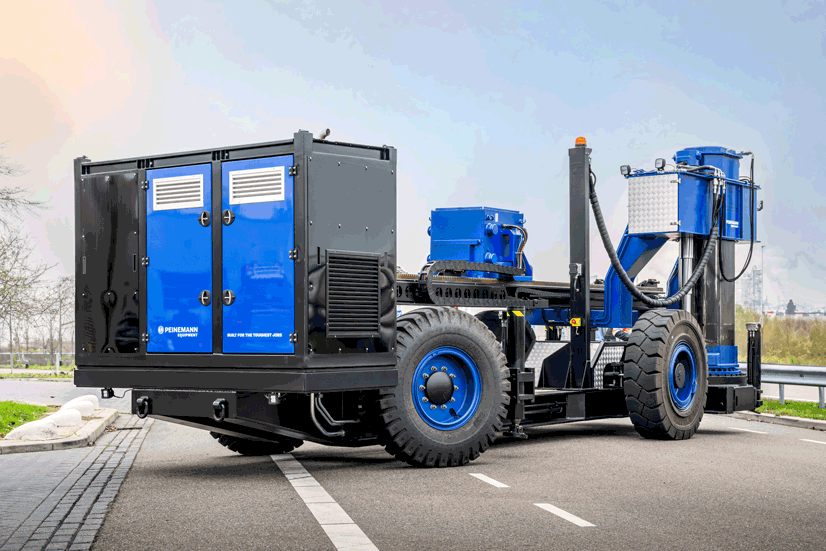

The Peinemann SPRM20 combines the compact agility of our Self-Propelled Extractor with the pulling strength and rear-access design of a Truck-Mounted Extractor. Built for plants where space is limited, it can easily approach exchangers positioned close to walls or other obstacles, extracting bundles where others simply can’t.

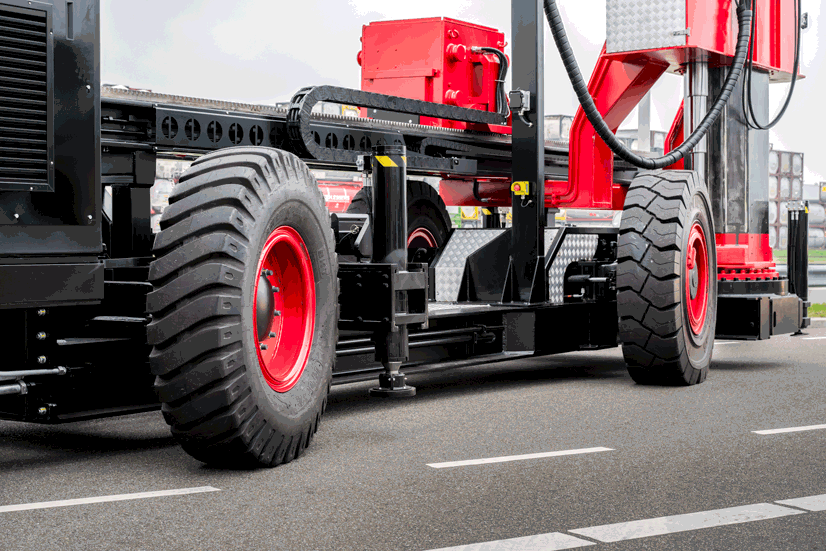

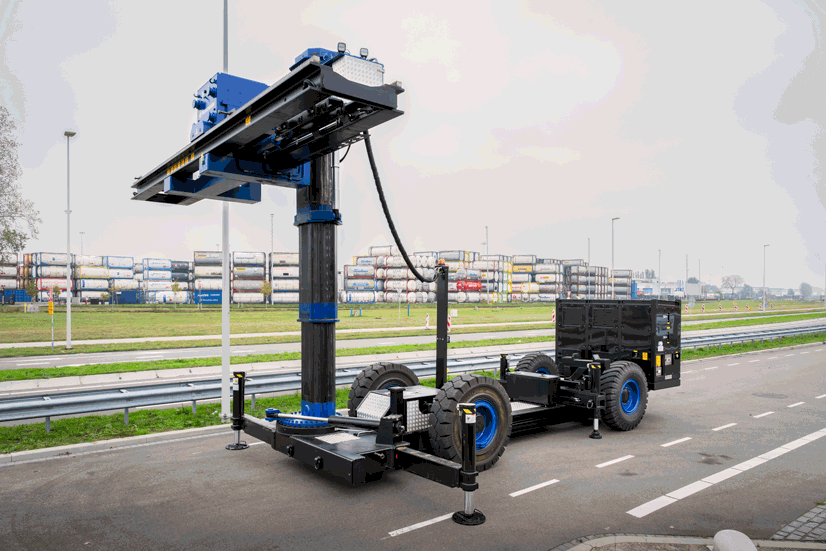

Its rear-mounted mast allows the pull bed to reach ground level, making it possible to extract bundles positioned extremely low without the need for extra clearance. The machine’s independently steering axles provide exceptional maneuverability, while the side-shifting pull hook ensures precise alignment from either side.

Designed for heavy-duty use, the SPRM20 handles bundles up to 20 MT (44,092 lbs) and lengths up to 8.00 m (26.25 ft).This all within a compact 2.50 m (8.17 ft) footprint that doesn’t require oversize transport permits. With a maximum extraction height of 5.25 m (17'3") and a minimum of 0.49 m (19"), it’s built to perform across a wide range of exchanger setups.

Whether operating in tight refinery alleys or high-density turnaround sites, the SPRM20 delivers the performance of a full-size extractor in a more flexible, transportable package.
